Cutting Machine

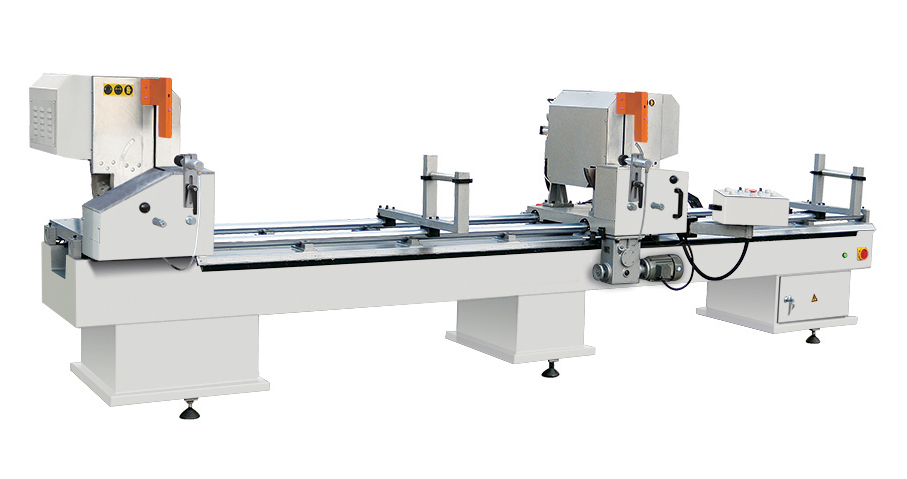

LJZ2-450×3700 Double-head Cutting Saw for Aluminum and PVC Profile
Views：
Online consulting
Product Description
The machine is used for cutting aluminum profile.
Imported carbide saw blade gives accurate processing and high efficiency.
Two cutting heads can work together or single, when together work, one time can cut of the required length and angle.
Right head adopts motor drive.
Two saw head can be manually switching angle, realize the -45 degree, 90 degree, 45 degree angle cutting profile.
Imported carbide saw blade gives accurate processing and high efficiency.
Two cutting heads can work together or single, when together work, one time can cut of the required length and angle.
Right head adopts motor drive.
Two saw head can be manually switching angle, realize the -45 degree, 90 degree, 45 degree angle cutting profile.
Technical Parameters
Input power：3.55Kw
Power supply：380V 50Hz
Air pressure： 0.5～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ450×φ30mm
Cutting angle： -45°~ 90°~ 45 °
Cutting length： 680-3700mm
Cutting weight×height：120×160mm
Overall dimension：4600×1300×1550mm
Power supply：380V 50Hz
Air pressure： 0.5～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ450×φ30mm
Cutting angle： -45°~ 90°~ 45 °
Cutting length： 680-3700mm
Cutting weight×height：120×160mm
Overall dimension：4600×1300×1550mm
Supporting Products
LJZ2-450×3700Double-head Cutting Saw for Aluminum and PVC Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
