Cutting Machine

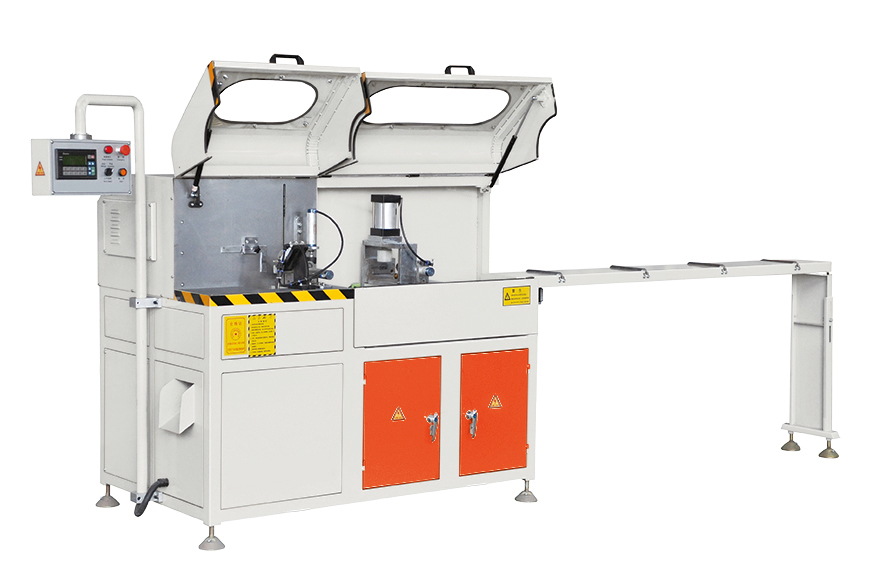

LJM-CNC-500 Corner Connector Automatic Heavy-duty Cutting Saw
Views：
Online consulting
Product Description
This machine is mainly used for corner connector of aluminum door and window profile cutting, only one time clamping, can realize continuous cutting for 6 meters corner connector profile.
Equipment advantages:
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance etc.
Mainly used for corner connector of aluminum door and window profile cutting.
Only one time clamping, can realize continuous cutting for 6 meters corner connector profile.
The use of imported control system, the control system adopt man-machine interface, high automation degree.
Imported carbide saw blade gives accurate processing and high efficiency.
Feeding movement using linear motion bearings, movement resistance is small, high precision.
Feeding agencies using automatic feeding system, stable and reliable, high efficiency.
Work clamping, sawing forward and backward using pneumatic system control, easy operation, safe and reliable, high productivity.
Equipment advantages:
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance etc.
Mainly used for corner connector of aluminum door and window profile cutting.
Only one time clamping, can realize continuous cutting for 6 meters corner connector profile.
The use of imported control system, the control system adopt man-machine interface, high automation degree.
Imported carbide saw blade gives accurate processing and high efficiency.
Feeding movement using linear motion bearings, movement resistance is small, high precision.
Feeding agencies using automatic feeding system, stable and reliable, high efficiency.
Work clamping, sawing forward and backward using pneumatic system control, easy operation, safe and reliable, high productivity.
Technical Parameters
Input power： 3.0KW
Power supply： 380V/50Hz
Air pressure： 0.5~0.8MPa
Motor speed： 2800r/min
Blade dimension： φ500×φ30
Auto feeding length： 5-700mm
Cutting width×height： 135×300mm
Overall dimension：1700×1400×1220mm
Power supply： 380V/50Hz
Air pressure： 0.5~0.8MPa
Motor speed： 2800r/min
Blade dimension： φ500×φ30
Auto feeding length： 5-700mm
Cutting width×height： 135×300mm
Overall dimension：1700×1400×1220mm
Supporting Products
LJM-CNC-500Corner Connector Automatic Heavy-duty Cutting Saw can be used with the following equipment to compose Aluminum Door and Window Machine production line.
