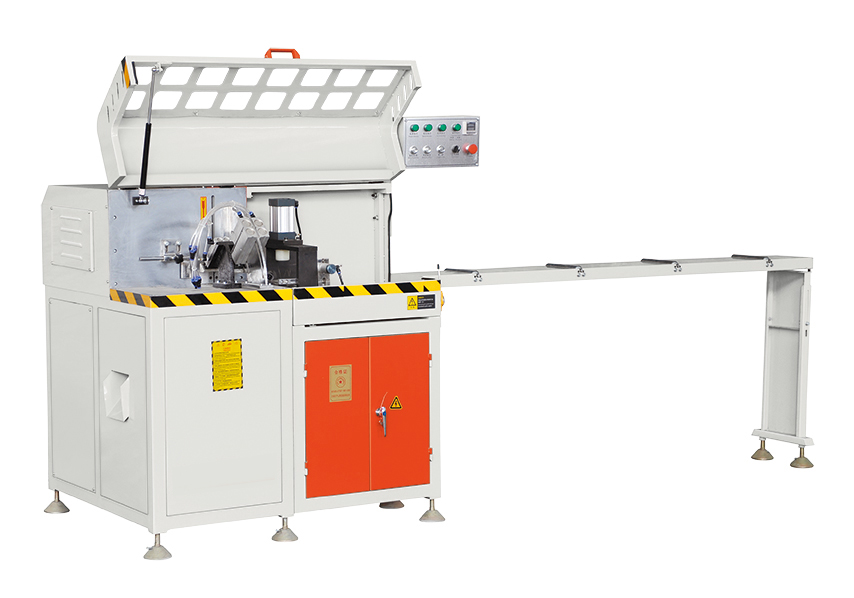

LJM-450　Corner Connector Automatic Cutting Saw

This machine is mainly used for corner connector of aluminum door and window profile cutting, only one time clamping, can realize continuous cutting for 6 meters corner connector profile.

Equipment advantages:
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance etc.
Mainly used for corner connector of aluminum door and window profile cutting.
Only one time clamping, can realize continuous cutting for 6 meters corner connector profile.
Imported carbide saw blade gives accurate processing and high efficiency.
Feeding movement using linear motion bearings, movement resistance is small, high precision.
Feeding agencies using automatic feeding system, stable and reliable, high efficiency.
Work clamping, sawing forward and backward using pneumatic system control, easy operation, safe and reliable, high productivity.

Input power： 2.2KW
Power supply： 380V/50Hz
Air pressure： 0.5~0.8MPa
Motor speed： 2800r/min
Blade dimension： φ450×φ30
Auto feeding length： 5-120mm
Cutting width×height： 120×200mm
Overall dimension：1240×1300×1300mm

LJM-450Corner Connector Automatic Cutting Saw can be used with the following equipment to compose Aluminum Door and Window Machine production line.
