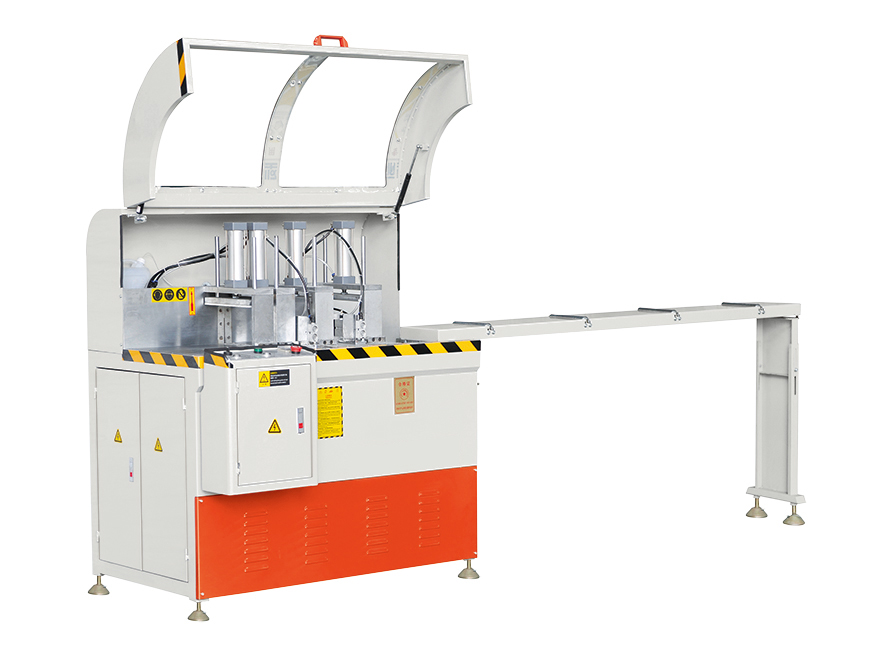

LJMC-450　Corner Connector Automatic Cutting Saw

It is suitable for aluminum doors and windows corner connector efficient cutting and aluminum profile cutting, one times can clamp multiple profiles cutting at the same time, high precision, high efficiency.
Equipment advantages:
It is suitable for aluminum doors and windows corner connector efficient cutting and aluminum profile cutting, one times can clamp multiple profiles cutting at the same time, high precision, high efficiency.
The movement pair of cutting part adopts linear guide rail, The movement pair of automatic feeding part adopts ball screw, smooth operation, high precision.
With the function of automatic counting.
With the spray device, which can improve the processing accuracy and also can extend the life of the blade.
When cutting the short profile, forward and backward profile butt joint without tailing.
The circuit system is equipped with a motor phase sequence protector to improve the safety of the system.

Input power： 3.0KW
Power supply： 380V/50Hz
Air pressure： 0.5~0.8MPa
Motor speed： 2800r/min
Blade dimension： φ450×φ30
Auto feeding length： 3-120mm
Cutting length：250mm
Overall dimension：3140×1380×1800mm

LJMC-450Corner Connector Automatic Cutting Saw can be used with the following equipment to compose Aluminum Door and Window Machine production line.
