Corner Combining Machine

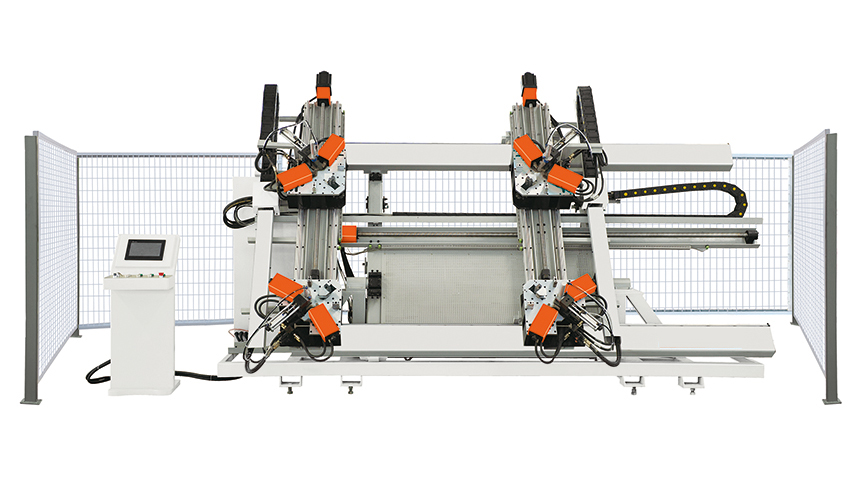

LZJ04-CNC-1800×3000B CNC Four Mitre Corner Combining Machine
Views：
Online consulting
Product Description
For aluminum window crimping.
One frame crimping at the same time.
The control system has position control and moment feedback function for preventing location error.
Imported servo system, self-brake device for making sure high precision crimping and accurate crimping position.
Dual enlarge location block makes stable location.
High-low pressure dual feeding for improving the synchronism of the tooling.
Technical Parameters
Input power：7.5Kw
Power supply：380V 50Hz
Rated pressure：15MPa
Capability of oil box：60L
Max. hydraulic pressure：48KN
Corner cylinder motion stroke：0-60mm
Max frame dimension：1800×3000mm
Min frame dimension：550×550mm
Profile processing width：90mm
Overall dimension：4700×2000×2500mm
Supporting Products
LZJ04-CNC-1800×3000BCNC Four Mitre Corner Combining Machine can be used with the following equipment to compose Aluminum Door and Window Machine production line.
