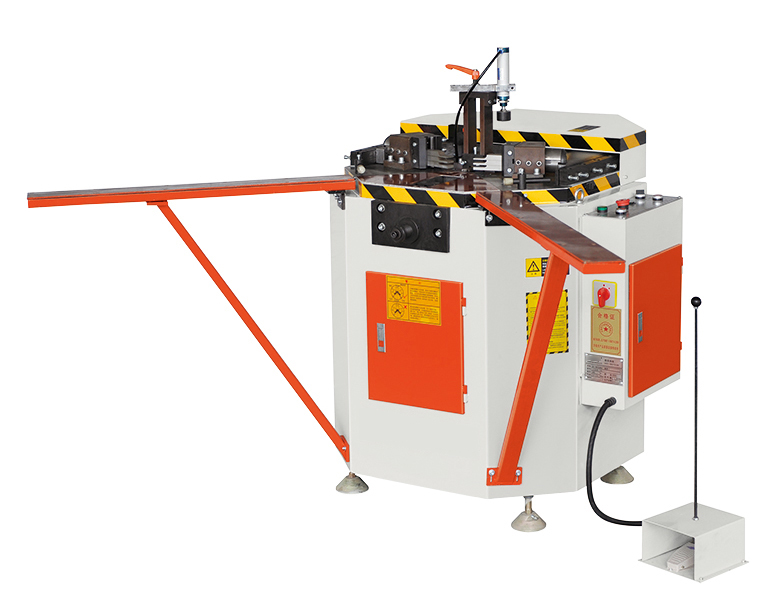

LZJ02B-120 Single-head Corner Combining Machine
Views：
Online consulting
Product Description
Used for combining the 90 corner of high quality aluminum window and door.
Strengthened machine structure and rack to make it work more stable and low malfunctions.
Auto up-down inner localization to make workpiece clamping convenient;
Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness;
Special high speed hydraulic system to supply fast crimping and high efficiency.
Inner corner locating device adopt adjustable locating device. It is suitable for various sections and sizes.
Technical Parameters
Input power：1.5kw
Power supply：380V/50HZ
Air pressure：0.5~0.8MPa
Air consumption：2L
Rated pressure：16MPa
Capability of oil box：20L
Profile height：120mm
Total Corner combing pressure：48KN
Overall dimension：1850×1680×1210mm
Supporting Products
LZJ02B-120Single-head Corner Combining Machine can be used with the following equipment to compose Aluminum Door and Window Machine production line.
