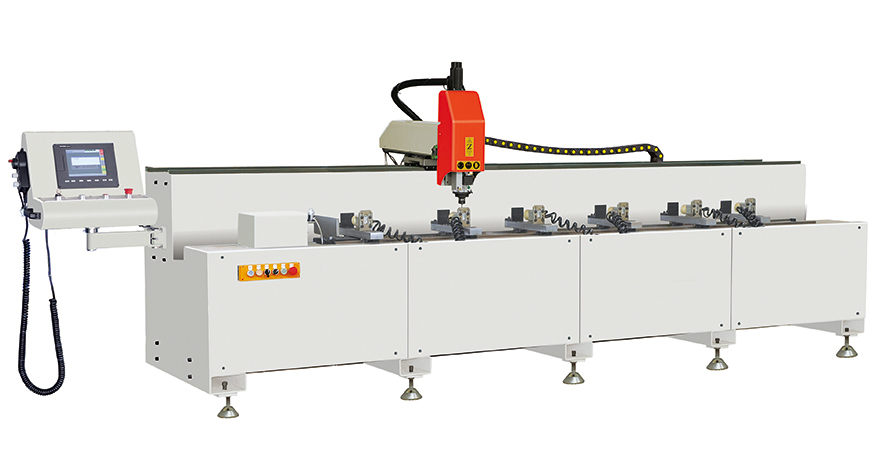

LZX-CNC-3500/3200/1800　CNC Milling Machine for Aluminum Profile

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, charming, engraving plane surface and other procedure.
Equipment Advantages:
Using advanced industrial CNC systems, friendly human-machine interface, device operation is simple.
Suitable for aluminum alloy, aluminum and wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.
Bend made of high strength welding structure, after heat aging after annealing processing guarantee high rigidity and high stability.
Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision.

X-way range: 3500mm
X-way speed: 0~60m/min
Y-way range: 300mm
Y-way speed: 0~48m/min
Z-way range: 200mm
Z-way speed: 0~20m/min
Roughness: Ra 6.3 μm
Spindle Power: 5.5kW
Spindle Speed: 0~18000rpm
Working Pressure: 0.6～0.8MPa
Power Specification: 380V/50Hz
Total Power of Machine: 8.5kW
Machine Size: 5100x1420x1750mm

LZX-CNC-3500/3200/1800CNC Milling Machine for Aluminum Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
