Milling Machine

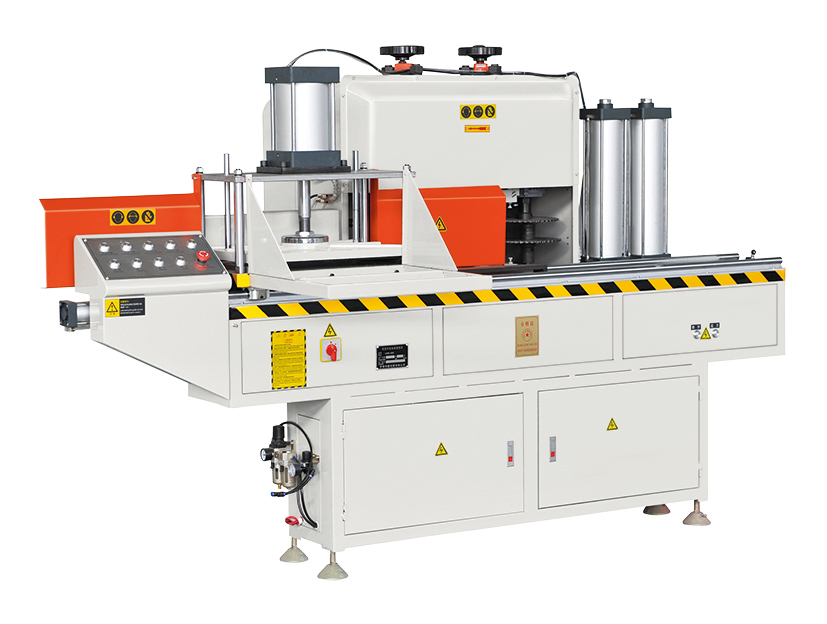

LXDB-250C End-milling Machine for Aluminum Profile
Views：
Online consulting
Product Description
Used for aluminum profile end processing, one-time milling to multi-pieces profiles, which increased the processing efficiency.
Equipment advantages:
Used for aluminum profile end processing, one-time milling to multi-pieces profiles, which increased the processing efficiency.
Convenient tool adjustment to meet different processing requirement ,need not ordering tools when process various profile, thus cost and save time.
Large tool diameter, high milling speed and good processing result.
Equipment advantages:
Used for aluminum profile end processing, one-time milling to multi-pieces profiles, which increased the processing efficiency.
Convenient tool adjustment to meet different processing requirement ,need not ordering tools when process various profile, thus cost and save time.
Large tool diameter, high milling speed and good processing result.
Technical Parameters
Power supply：380V 50Hz
Input power：4×2.2kW
Air pressure：0.6～0.8MPa
Motor speed：2800r/min
Blade dimension：φ250×φ32mm
Cutter feed stroke：1600mm
Max open tenon：40mm
Cutter adjustment：85mm
Overall dimension：2680×1020×1600mm
Input power：4×2.2kW
Air pressure：0.6～0.8MPa
Motor speed：2800r/min
Blade dimension：φ250×φ32mm
Cutter feed stroke：1600mm
Max open tenon：40mm
Cutter adjustment：85mm
Overall dimension：2680×1020×1600mm
Supporting Products
LXDB-250CEnd-milling Machine for Aluminum Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
