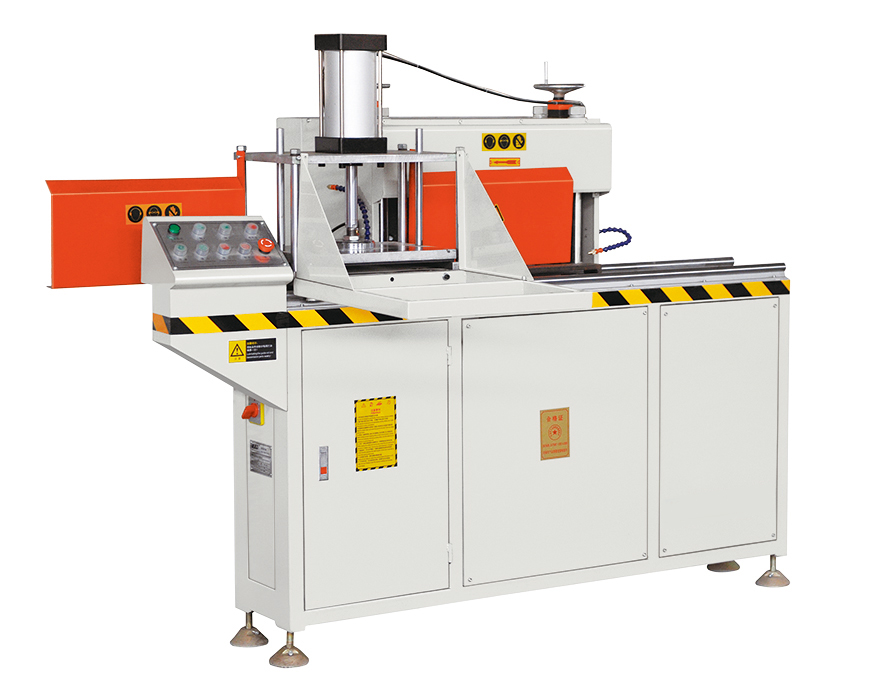

LXDB-200C End-milling Machine for Aluminum Profile
Views：
Online consulting
Product Description
Used for aluminum profile end processing, one-time milling to multi-pieces profiles, which increased the processing efficiency.
Equipment advantages:
Used for processing aluminum profile end, step face and slot etc. for example forming processing of upper and lower sliding of aluminum window and door, and another processing the profile, open rectangular slot and so on.
This machine absorb the advantage of foreign machine, it is a new shape development by our company. The machine body compact structure, the working area is very large, easy operation, which increased the processing efficiency.
Equipment advantages:
Used for processing aluminum profile end, step face and slot etc. for example forming processing of upper and lower sliding of aluminum window and door, and another processing the profile, open rectangular slot and so on.
This machine absorb the advantage of foreign machine, it is a new shape development by our company. The machine body compact structure, the working area is very large, easy operation, which increased the processing efficiency.
Technical Parameters
Power supply：380V 50Hz
Input power：2×2.2kW
Air pressure：0.5～0.8MPa
Motor speed：2800r/min
Main shaft diameter：φ32mm
Milling cutter dimension：φ200×1 φ180×3
Milling cutter thickness：160mm
Worktable size：550×380mm
Worktable feed stroke：950mm
Max open tenon：80×50mm
Overall dimension：1780×830×1630mm
Supporting Products
LXDB-200CEnd-milling Machine for Aluminum Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
