Milling Machine

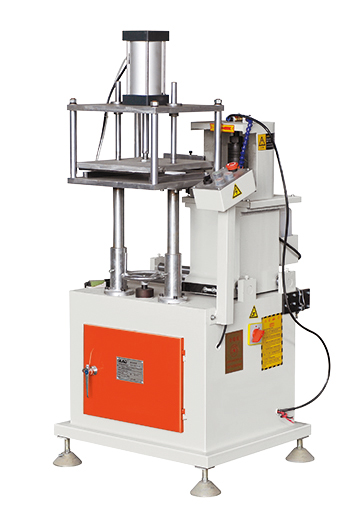

LXDW-200B End-milling Machine
Views：
Online consulting
Product Description
Used for processing the side surface, stepped surface and end groove of different profiles.
The worktable can be adjusted up and down, widely used in all kinds of profiles.
Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating can not affect the tool's working accuracy.
The feeding of cutters is automatically droved by cylinder, which makes the machine work stably.
Technical Parameters
Input power：1.5Kw
Power supply：380V 50Hz
Air pressure：0.5~0.8Mpa
Motor rotary speed：2800r/min
Cutter specification：Φ200×Φ32mm
Overall dimension：850×740×1300mm
Supporting Products
LXDW-200BEnd-milling Machine can be used with the following equipment to compose Aluminum Door and Window Machine production line.
