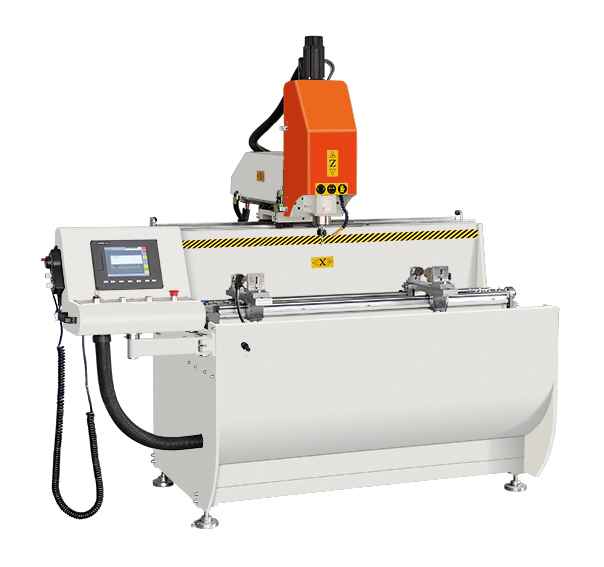

LZX-CNC-1200 CNC Drilling Milling Machine for Aluminum Profile
Views：
Online consulting
Product Description
Equipment Features
The machine is used for drilling holes, milling grooves, processing round holes and special-shaped holes,plane engraving of aluminum alloy profiles.
Adopted Taiwan Syntec CNC Control system.
Adopted the electric spindle, high precision, high safety and reliability.
X axle adopts high precision helical gear and rack, Y and Z axiss adopt high-precision ball screw trassmission, steady transmission and high precision.
By using programming software to transform and process G code automatically, easy operation, high efficiency and low labour intensity.
Workbench can turn 180°,-90°0°+90°, it can realize material three-sides section processing by clamping one time, it can process deep and special-shaped holes through workbench turning, high efficiency and precision.
The machine is used for drilling holes, milling grooves, processing round holes and special-shaped holes,plane engraving of aluminum alloy profiles.
Adopted Taiwan Syntec CNC Control system.
Adopted the electric spindle, high precision, high safety and reliability.
X axle adopts high precision helical gear and rack, Y and Z axiss adopt high-precision ball screw trassmission, steady transmission and high precision.
By using programming software to transform and process G code automatically, easy operation, high efficiency and low labour intensity.
Workbench can turn 180°,-90°0°+90°, it can realize material three-sides section processing by clamping one time, it can process deep and special-shaped holes through workbench turning, high efficiency and precision.
Technical Parameters
Air Pressure:0.5~0.6MPa
X/Y/Z Axis stroke:1200mm*300mm*280mm
Input Voltage:380V 50Hz or As Customer need
Input Power:3Kw
Handle type:ER25*Φ8
Processing range:100*140
Overall size:2200×1500×1950mm
X/Y/Z Axis stroke:1200mm*300mm*280mm
Input Voltage:380V 50Hz or As Customer need
Input Power:3Kw
Handle type:ER25*Φ8
Processing range:100*140
Overall size:2200×1500×1950mm
Supporting Products
LZX-CNC-1200CNC Drilling Milling Machine for Aluminum Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
