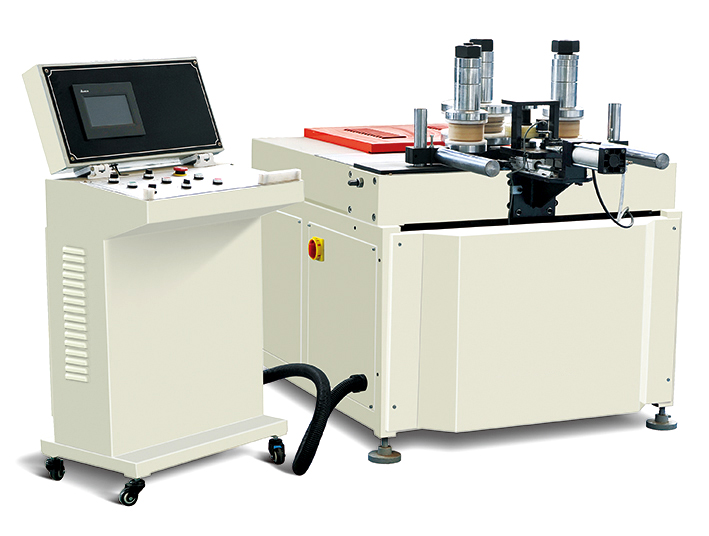

YH200-CNC CNC Metal Profile Bending Machine
Views：
Online consulting
Product Description
The machine is mainly used for bending for metal material such as iron, copper and aluminum and special-shaped material. It’s ideal equipment of curved process for furniture manufactures, wrought iron engineering manufactures, aluminum alloy doors and windows manufactures, decorative steel structure enterprise.
The machine adopts CNC controller, which make the machine feature easy handling and high precision
Using CNC software makes the bending operation very simple.
Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
Capable of detecting material rebound data, eliminate rebound.
Technical Parameters
Input power: 6kw
Power supply: 380V/50Hz
Min. diameter of bending: 100mm
Max. width of profile: 150mm
Max. diameter of rolls: 180mm
Hydraulic cylinder pressure: 160KN
Roller-holding shaft diameter: 40mm
Rotation speed of shaft: 1-8r/min
Top roll runout: 180mm
Overall dimension: 1550 x 1250 x 1050mm
Supporting Products
YH200-CNCCNC Metal Profile Bending Machine can be used with the following equipment to compose Aluminum Door and Window Machine production line.
