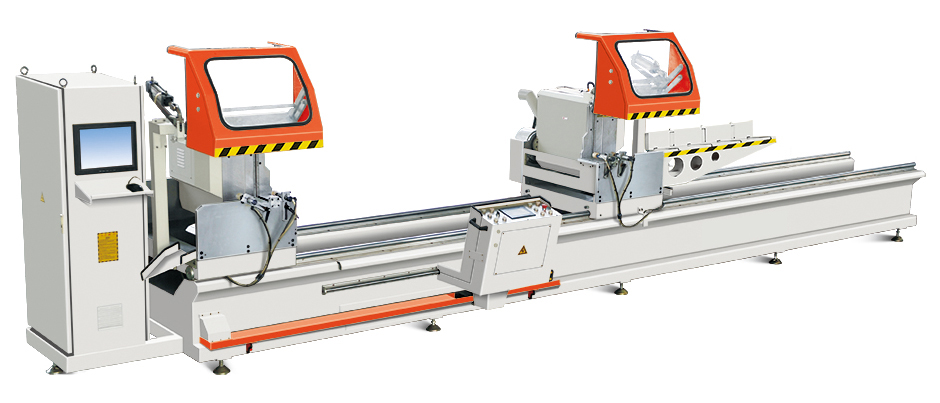

LJB2B-CNC-500×5000 CNC Arbitrary-corner Double-head Cutting Saw
Views：
Online consulting
Product Description
This machine is designed for cutting any angle of aluminum curtain wall and window and door profile. The cutting angle is auto adjustable through the imported servo motor between 45°to 157.5°.
Equipment Advantages:
The machine is the most advanced double-head cutting saw equipment for aluminum window and door.
The control system adopts the new closed-loop system.
The service motor drives the speed reducer to adjust the cutting angle in 45°~157.5°.
The imported high precision blade makes the cutting surface more smooth.
The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
The airproof device under the worktable has wonderful crumbs-clearing effect.
The following saw cover keeps it working in the clean environment.
The profile is clamped by two cylinders in every head, and kept the cutting security .
Equipment Advantages:
The machine is the most advanced double-head cutting saw equipment for aluminum window and door.
The control system adopts the new closed-loop system.
The service motor drives the speed reducer to adjust the cutting angle in 45°~157.5°.
The imported high precision blade makes the cutting surface more smooth.
The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
The airproof device under the worktable has wonderful crumbs-clearing effect.
The following saw cover keeps it working in the clean environment.
The profile is clamped by two cylinders in every head, and kept the cutting security .
Technical Parameters
Power supply: 380V 50Hz
Cutting head motor power: 2×2.2Kw
Rotary Speed: 2800 r/min
Saw blade swing angle servo motor：power 2×0.9Kw
Cutting head horizontal move servo motor：power 1.5Kw
Cutting head turn angle motor：power 2×0.18Kw
Air pressure: 0.5-0.8MPa
Cutting length: max 5300mm
Cutting width×height: 120×230mm 90°
Cutting angle: 45°-157.5° Any angle in the range
Cutting speed: stepless speed regulation 0-3m/min
Blade specification: ø500×4.4×ø30 mm Z= 120
Overall dimension: 7500×2450×1700mm
Cutting head motor power: 2×2.2Kw
Rotary Speed: 2800 r/min
Saw blade swing angle servo motor：power 2×0.9Kw
Cutting head horizontal move servo motor：power 1.5Kw
Cutting head turn angle motor：power 2×0.18Kw
Air pressure: 0.5-0.8MPa
Cutting length: max 5300mm
Cutting width×height: 120×230mm 90°
Cutting angle: 45°-157.5° Any angle in the range
Cutting speed: stepless speed regulation 0-3m/min
Blade specification: ø500×4.4×ø30 mm Z= 120
Overall dimension: 7500×2450×1700mm
Supporting Products
LJB2B-CNC-500×5000CNC Arbitrary-corner Double-head Cutting Saw can be used with the following equipment to compose Aluminum Door and Window Machine production line.
