Cutting Machine

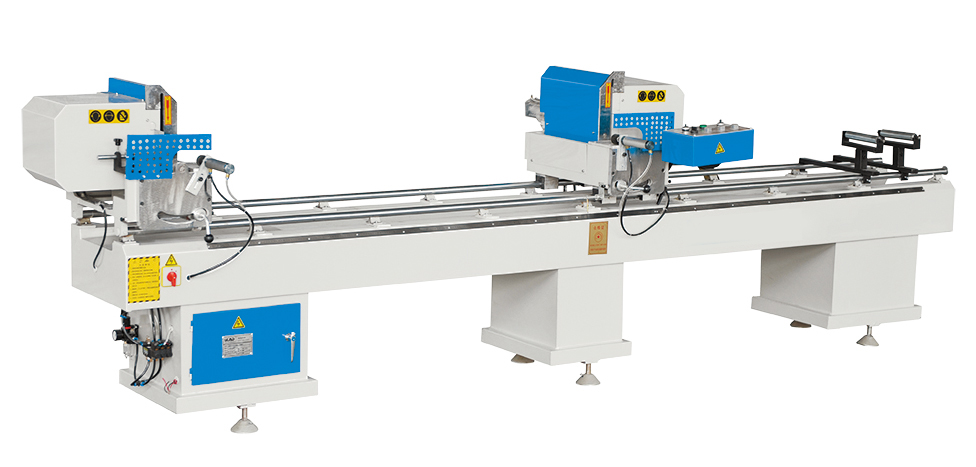

LJZ2-400B Double-head Cutting Saw for PVC Profile
Views：
Online consulting
Product Description
This machine is used for processing the aluminum and plastic profile at angles of 45°, 90°.
The swaying stable feeder is adopted.
The pneumatic driving system is used in profiles clamping and cutting.
It has the features of easy operation and high accuracy.
Technical Parameters
Input power：2×1.5Kw
Power supply：380V/50Hz
Air pressure：0.5-0.8MPa
Air consumption：30L/min
Saw blade specification:φ400×φ30mm
Motor rotary speed：2800r/min
Cutting height： 500mm
Cutting width： 100mm
Cutting length： 450-3500mm
Overall dimension： 4000×1000×1450mm
Supporting Products
LJZ2-400BDouble-head Cutting Saw for PVC Profile can be used with the following equipment to compose PVC Door and Window Machine production line.
