Cutting Machine

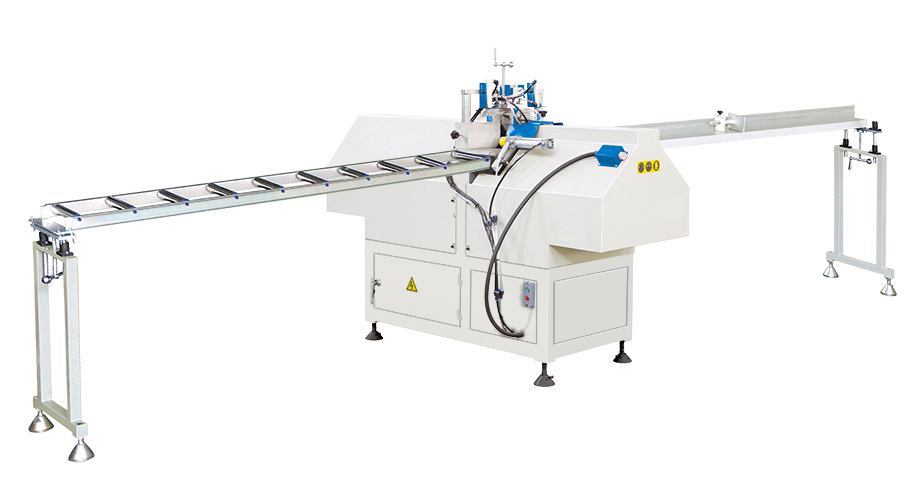

SJT-400 Mulion Saw for PVC Profile
Views：
Online consulting
Product Description
This machine is used for mullion cutting of plastic door window.
Tow cutting blades are in the space of 90 degree layout,a clamp is installed at the same time to complete tow v-shaped cutting head,with high cutting precision and high productivity.
Horizontal structure for high cutting precision.
Special clamping device,no pop material.
Cutting waste is produced in the curf only,make good use of the profiles.
Technical Parameters
Input Power: 2×1.1kw
Power supply: 380V/50HZ
Air pressure: 0.5~0.8MPa
Air consumption: 80L/min
Motor rotary speed: 2800r/min
Cutting height: ≤110mm
Cutting width: ≤120mm
Cutting length: 300~1600mm
Overall dimension: 1900×700×1350mm
Supporting Products
SJT-400Mulion Saw for PVC Profile can be used with the following equipment to compose PVC Door and Window Machine production line.
