Cutting Machine

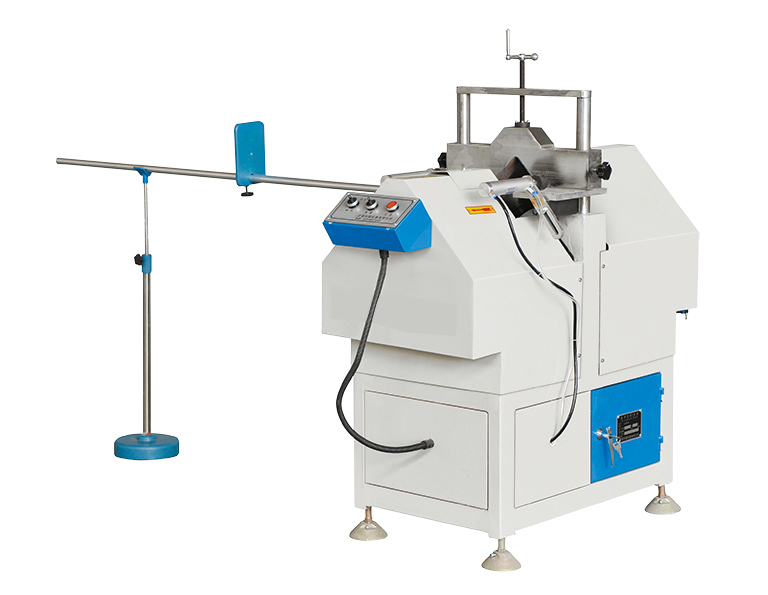

LJVW-65 V-Cutting Saw for PVC Profile
Views：
Online consulting
Product Description
The machine applies to cutting 90 V-shapted groove for aluminum and PVC profiles.
It is controlled by pneumatic drive.
It has characteristics of easy operation, stability, and high efficiency.
Technical Parameters
Input power：2.2Kw
Power supply：380V/50Hz
Air pressure：0.5-0.8MPa
Air consumption：30L/min
Motor rotary speed：2800r/min
Cutting height： 20-60mm
Cutting width： 120mm
Cutting length： 300-1600mm
Overall dimension： 1800×1380×1300mm
Supporting Products
LJVW-65V-Cutting Saw for PVC Profile can be used with the following equipment to compose PVC Door and Window Machine production line.
