Milling Machine

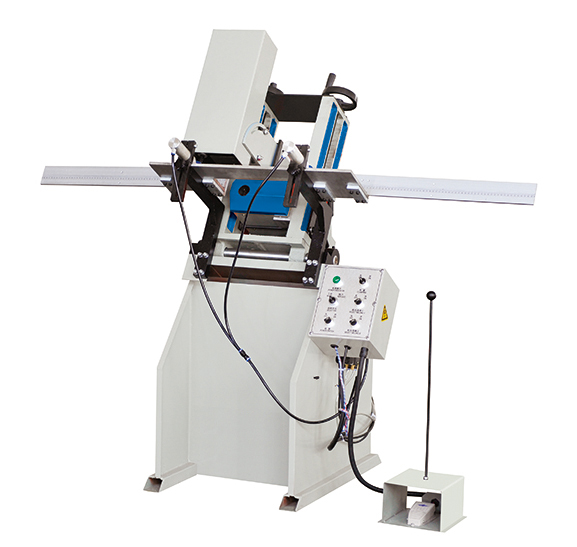

SXS2-30×6 Automatic Water Slot Milling Machine
Views：
Online consulting
Product Description
Used for milling all kinds of water-slots and air pressure balance grooves.
Special feeding system, need no special maintenance, high milling quality.
The length of milling water slot within 60mm is adjustable and its usage range is wide.
Two milling heads can work together to meet various processing requirement.
Special feeding system, need no special maintenance, high milling quality.
The length of milling water slot within 60mm is adjustable and its usage range is wide.
Two milling heads can work together to meet various processing requirement.
Technical Parameters
Input Power: 0.28×2/3/4Kw
Power supply: 220V/50HZ
Air pressure: 0.5-0.8Mpa
Air Consumption: 30L/Min
Motor rotary speed: 25000r/min
Cutter Diameter: Φ5 Φ4mm
Slot Depth: 30mm
Slot Length: 30-60mm
Overall Dimension: 2100x860x1500mm
Supporting Products
SXS2-30×6Automatic Water Slot Milling Machine can be used with the following equipment to compose PVC Door and Window Machine production line.
