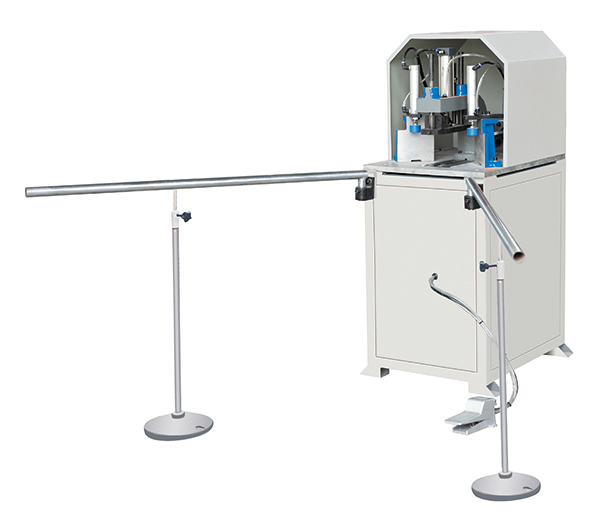

SQJ06-120　Corner Cleaning Machine

It is used to clean the upper and lower plane welds of 90° welding angle on plastic door and window frame (leaf).
Ideal cleanup effect.
Easy operation and high efficiency.

Input power: 1.14Kw
Power supply: 220V/50HZ
Air pressure:0.5-0.8mpa
Air consumption:15L/min
Motor rotate speed :2800r/min
profile height:30-120mm
profile width:25-120mm
Cleaning groove width:3mm
Cleaning groove depth:0.3mm
Overall dimension:1050x670x1370mm

SQJ06-120Corner Cleaning Machine can be used with the following equipment to compose PVC Door and Window Machine production line.
