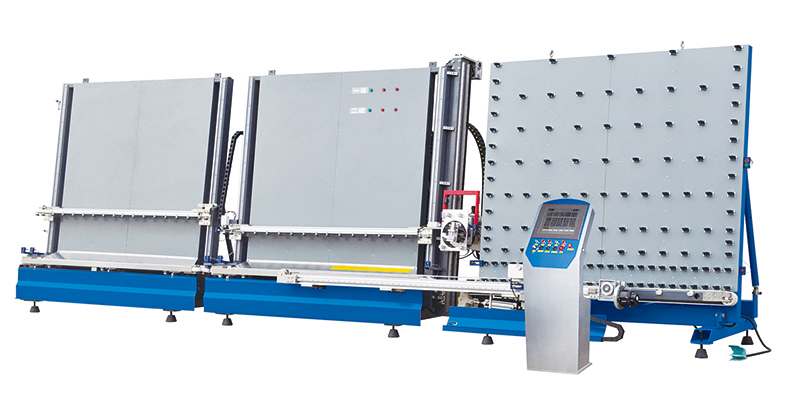

FJX-C2500/2200/1800-32 Insulating glass automatic sealing robot
Views：
Online consulting
Product Description
Continous and high-quality sealing for rectangle insulating glass units of different sizes.
Special V-shaped synchronous belt makes sure the stable and clean conveying of insulating glass units.
Auotmatic centring system guarantees the sealing nozzle is in the center of aluminum spacers.
Automatically detect the sealing depth, accurately adjust the sealing speed, the nozzle position and sealing amount.
Automatic corner trimming function by sealing gun wipers makes the corner full and smooth.
Electric proportional valves ajust the pressure accurately, which guarantees the stable pressure of sealing system.
Servo hydraulic system controls the sealing amount accurately.
Adopt CNC multe-axis servo control system and man-machine interface operating system.
Two groups of sealant supply system can be exchanged automatically (optional).
Sealant amount warning system can remind the worker to change sealant barrels.
Special V-shaped synchronous belt makes sure the stable and clean conveying of insulating glass units.
Auotmatic centring system guarantees the sealing nozzle is in the center of aluminum spacers.
Automatically detect the sealing depth, accurately adjust the sealing speed, the nozzle position and sealing amount.
Automatic corner trimming function by sealing gun wipers makes the corner full and smooth.
Electric proportional valves ajust the pressure accurately, which guarantees the stable pressure of sealing system.
Servo hydraulic system controls the sealing amount accurately.
Adopt CNC multe-axis servo control system and man-machine interface operating system.
Two groups of sealant supply system can be exchanged automatically (optional).
Sealant amount warning system can remind the worker to change sealant barrels.
Technical Parameters
Input power 12Kw
Air supply 0.5-0.8Mpa
Sealing depth 2—15mm
Sealing width 6-24mm
Sealing speed 0-25m/min
Conveying speed 0-48m/min
Glass thickness 3-12mm
Insulating glass thickness 12-60mm
Min. glass size 350×500mm
Max. glass size 1800×2500mm
Max. squeeze pressure 32MPa
Outside dimension 8500×4000×2700mm
Air supply 0.5-0.8Mpa
Sealing depth 2—15mm
Sealing width 6-24mm
Sealing speed 0-25m/min
Conveying speed 0-48m/min
Glass thickness 3-12mm
Insulating glass thickness 12-60mm
Min. glass size 350×500mm
Max. glass size 1800×2500mm
Max. squeeze pressure 32MPa
Outside dimension 8500×4000×2700mm
Supporting Products
FJX-C2500/2200/1800-32Insulating glass automatic sealing robot can be used with the following equipment to compose Insulating Glass Machine production line.
