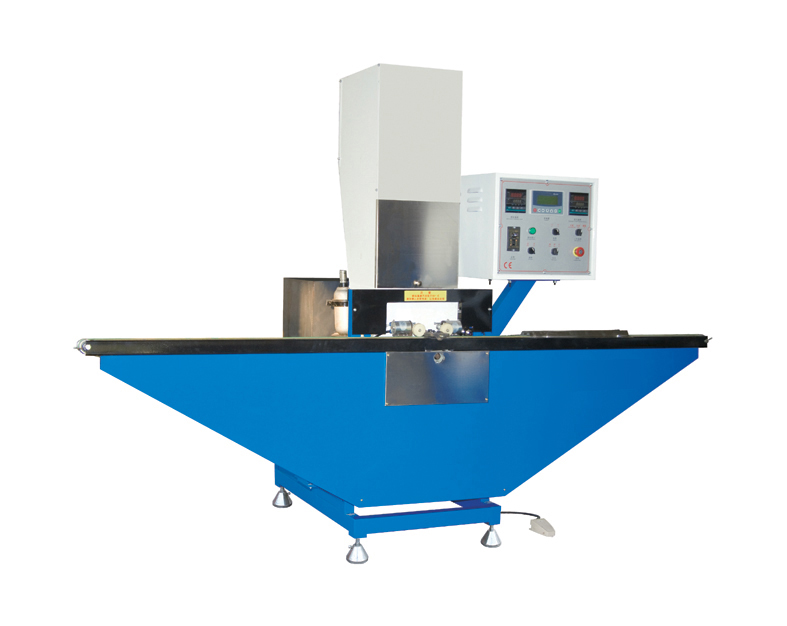

TLS03 Vertical Butyl Coating Machine
Views：
Online consulting
Product Description
This machine is a special equipment for evenly coating butyl hot melt adhesive on both sides of the aluminum spacer frame.
The equipment adopts photoelectric and PC control system, stepless speed regulation and high temperature resistant conveyor belt.
Double pressure wheel positioning, conveying and coating are automatically completed, easy to operate, stable operation, good glue application, and is an indispensable equipment for producing insulating glass.
The equipment adopts photoelectric and PC control system, stepless speed regulation and high temperature resistant conveyor belt.
Double pressure wheel positioning, conveying and coating are automatically completed, easy to operate, stable operation, good glue application, and is an indispensable equipment for producing insulating glass.
Technical Parameters
Power supply 380V/50Hz
Power 4.75kw
Working pressure 0.6 Mpa
Extrusion pressure 10-17Mpa
Conveying speed 0-35m/min
Glue temperature 90-150 ° C
Plastic head adjustable range 4-16mm
Dimensions 3000×1100×1800mm
Power 4.75kw
Working pressure 0.6 Mpa
Extrusion pressure 10-17Mpa
Conveying speed 0-35m/min
Glue temperature 90-150 ° C
Plastic head adjustable range 4-16mm
Dimensions 3000×1100×1800mm
Supporting Products
TLS03Vertical Butyl Coating Machine can be used with the following equipment to compose Insulating Glass Machine production line.
