Sealant Extruder

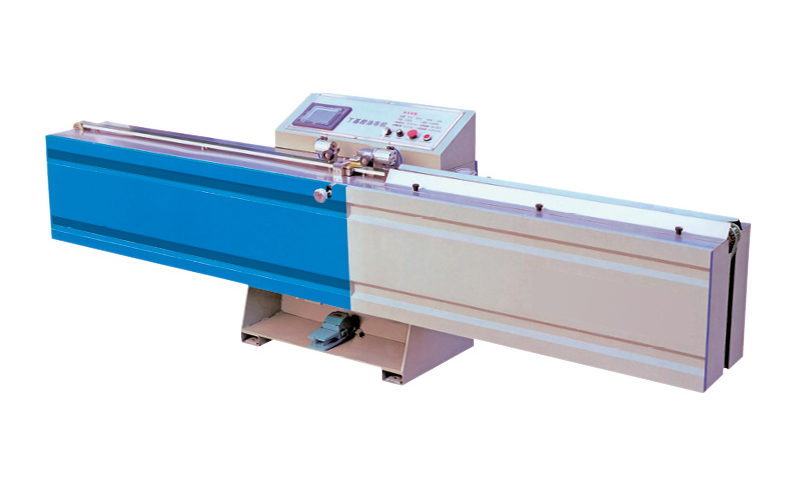

JT04 Butyl Coating Machine
Views：
Online consulting
Product Description
Features:
Adopt PLC control system, touch screen man-machine interface;
Digitally control the time of dispensing and stopping glue;
Automatic display function when there is no glue;
Rubber cylinder nozzle double heating system;
Equipment preheating function;
Curved aluminum frame coating function;
Distance adjustment between the nozzles;
The hydraulic pressure adopts German gas-liquid conversion supercharging technology.
Adopt PLC control system, touch screen man-machine interface;
Digitally control the time of dispensing and stopping glue;
Automatic display function when there is no glue;
Rubber cylinder nozzle double heating system;
Equipment preheating function;
Curved aluminum frame coating function;
Distance adjustment between the nozzles;
The hydraulic pressure adopts German gas-liquid conversion supercharging technology.
Technical Parameters
Power supply: 380V 50HZ
Power: 2.0KW
Air pressure: 0.8MPa
Conveying speed: 10-45m/min
Butyl rubber heating time: 30-40min
Heating temperature: 100-160 ° C
Plastic head adjustable range: 0-27mm
Dimensions: 3200 × 700 × 1050mm
Power: 2.0KW
Air pressure: 0.8MPa
Conveying speed: 10-45m/min
Butyl rubber heating time: 30-40min
Heating temperature: 100-160 ° C
Plastic head adjustable range: 0-27mm
Dimensions: 3200 × 700 × 1050mm
Supporting Products
JT04Butyl Coating Machine can be used with the following equipment to compose Insulating Glass Machine production line.
