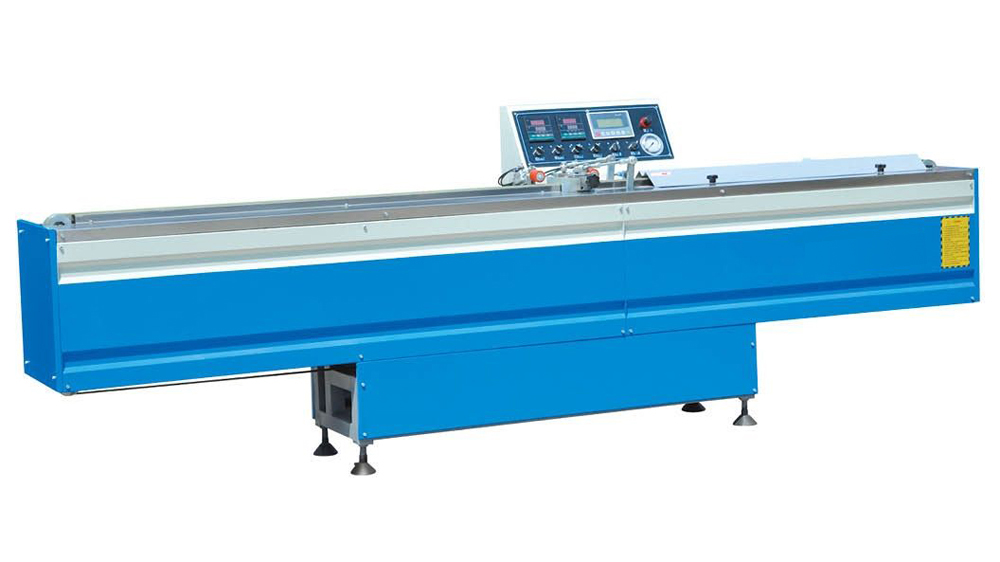

JT02　Butyl coating machine

The machine is a special equipment for coating butyl hot melt adhesive on both sides of the aluminum spacer frame. The operator needs to support the spacer frame. Other actions (pressure wheel, transmission, etc.) are automatically completed by the setting program, which is convenient to operate and stable and reliable.
The stainless steel brushed panel is used for clean and beautiful appearance.
Four-speed frequency control.
Advanced gas-liquid pressurized system, the pressure is even and stable.
The inner diameter of the rubber cylinder is Φ200mm and the length is 450mm. It is suitable for butyl rubber of various grades.
The rubber cylinder is equipped with a rubber out alarm system.
Start up 24 hours a day, saving warm-up time.
The touch screen man-machine interface is convenient for operation and high degree of automation.
Manual or hydraulic cylinders adjust the distance between the two rubber heads, which is convenient and quick.
Operating parameters can be displayed automatically.
It has a circular aluminum spacer stripping function.

Power supply: 380V, 50Hz
Total power: 3Kw
Plastic head adjustable range: 4-27mm
Extrusion pressure: 16-19MPa
Air pressure: 0.6-0.8MPa
Glue temperature: 130-160°C
Conveying speed: 0-35m/min
Dimensions: 3000 × 630 × 970mm

JT02Butyl coating machine can be used with the following equipment to compose Insulating Glass Machine production line.
