Sealant Extruder

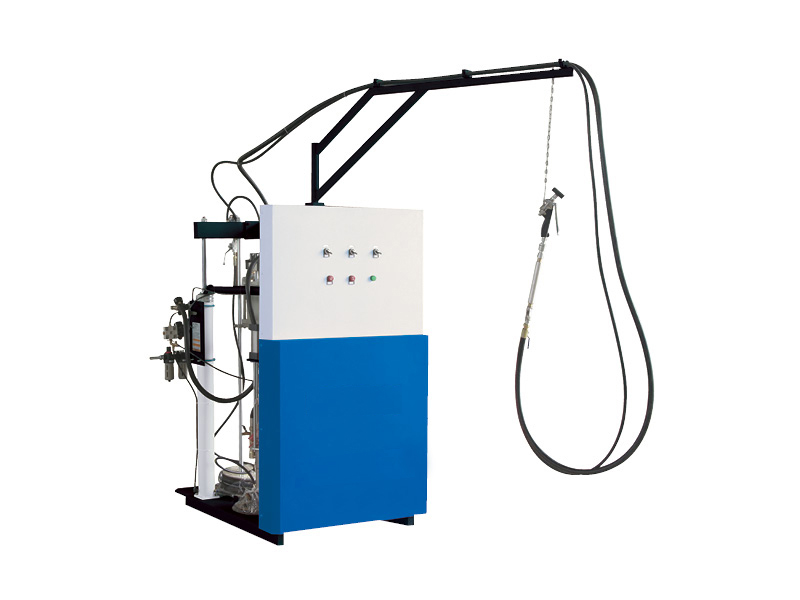

GT03 Two-component Silicone Extruder Machine
Views：
Online consulting
Product Description
The main pump is driven smoothly by a pneumatic system.
The fully enclosed curing agent rubber system that prevents the curing agent from solidifying by contact with air.
The two-component ratio structure is steplessly adjusted to meet accurate ratio requirements.
Using the internationally popular static reciprocating mixer, the mixing is more uniform.
The fully enclosed curing agent rubber system that prevents the curing agent from solidifying by contact with air.
The two-component ratio structure is steplessly adjusted to meet accurate ratio requirements.
Using the internationally popular static reciprocating mixer, the mixing is more uniform.
Technical Parameters
Mixing ratio: 6:1-14:1
Air pressure: 0.5-0.8MPa
Base barrel: 55 gallons (200L)
Curing agent barrel: 5 gallons (20L) (standard 285mm)
Maximum air consumption: 500L/Min
Maximum working pressure of extrusion: 25MPa
Air pressure: 0.5-0.8MPa
Base barrel: 55 gallons (200L)
Curing agent barrel: 5 gallons (20L) (standard 285mm)
Maximum air consumption: 500L/Min
Maximum working pressure of extrusion: 25MPa
Supporting Products
GT03Two-component Silicone Extruder Machine can be used with the following equipment to compose Insulating Glass Machine production line.
