Cutting Machine

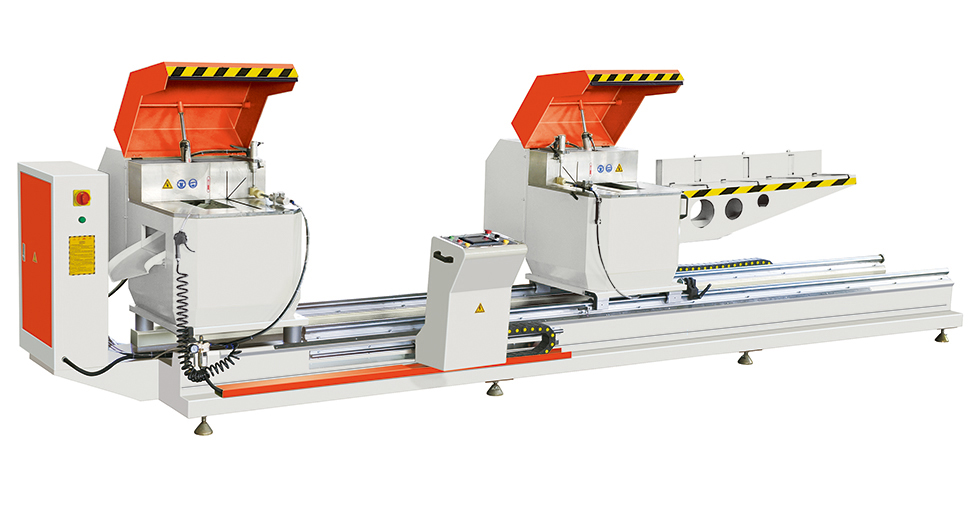

LJZX-CNC-500×4200 CNC Heavy-duty Double-head Cutting Saw for Aluminum Profile
Views：
Online consulting
Product Description
The machine is suitable for cutting aluminum alloy curtain wall profiles at angle 90°,45°, and can also be used for PVC profile cutting.
Equipment Advantages:
The main material for aluminum alloy curtain wall, window material cutting, and can also be used for plastic profile cutting.
The use of carbide saw blades, diameter up to 500 dia, line of high speed, high precision machining.
The machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected.
Machine during operation, two saw blade can cut, can separate cutting.
The saw head can be set to 45 degrees and 90 degrees need angle.
The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.
Equipment Advantages:
The main material for aluminum alloy curtain wall, window material cutting, and can also be used for plastic profile cutting.
The use of carbide saw blades, diameter up to 500 dia, line of high speed, high precision machining.
The machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected.
Machine during operation, two saw blade can cut, can separate cutting.
The saw head can be set to 45 degrees and 90 degrees need angle.
The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.
Technical Parameters
Input power：2×2.2Kw
Power supply：380V /50Hz
Air pressure： 0.6～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ500×φ30×4.4
Cutting angle： 90°,-45 °
Cutting length： 480-4200mm
Cutting weight×height：235×100mm
Overall dimension：5750×1300×1500mm
Power supply：380V /50Hz
Air pressure： 0.6～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ500×φ30×4.4
Cutting angle： 90°,-45 °
Cutting length： 480-4200mm
Cutting weight×height：235×100mm
Overall dimension：5750×1300×1500mm
Supporting Products
LJZX-CNC-500×4200CNC Heavy-duty Double-head Cutting Saw for Aluminum Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
