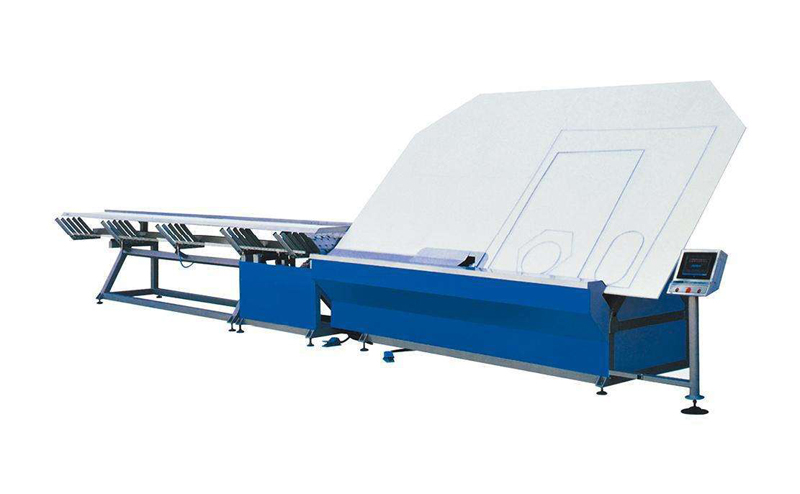

LWJ01 Aluminum spacer automatic bending machine
Views：
Online consulting
Product Description
PLC control system, touch man-machine interface, equipment operation is simple and convenient.
Adopt CNC servo motor feeding system and CNC bending angle control system.
Automatic cutter head, no need to change the knife for the aluminum frame of 6mm or more.
Automatically avoid the connection between the aluminum strips during bending and cutting, at the arc, automatically cut after bending
It can be folded into triangles, rectangles, squares, regular hexagons, arcs, etc.
Adopt CNC servo motor feeding system and CNC bending angle control system.
Automatic cutter head, no need to change the knife for the aluminum frame of 6mm or more.
Automatically avoid the connection between the aluminum strips during bending and cutting, at the arc, automatically cut after bending
It can be folded into triangles, rectangles, squares, regular hexagons, arcs, etc.
Technical Parameters
Electric power: 4KW 3P 380V 50HZ
Aluminum spacer specifications: 5.5m-20mm
Processing aluminum frame size: Min250×250mm; Max2000×2000mm
Feeding speed: 120mmin
Air pressure: 0.6-0.8Mpa
Dimensions: 10000 × 2200 × 2600mm
Aluminum spacer specifications: 5.5m-20mm
Processing aluminum frame size: Min250×250mm; Max2000×2000mm
Feeding speed: 120mmin
Air pressure: 0.6-0.8Mpa
Dimensions: 10000 × 2200 × 2600mm
Supporting Products
LWJ01Aluminum spacer automatic bending machine can be used with the following equipment to compose Insulating Glass Machine production line.
