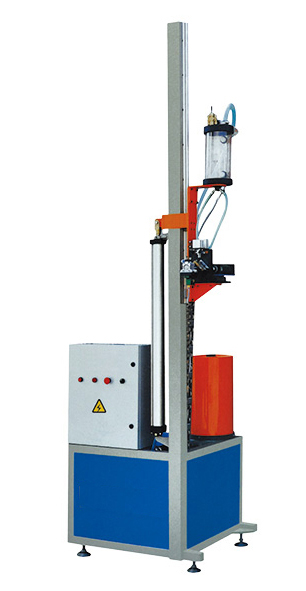

FZJ01 Automatic Desiccant Filling Machine
Views：
Online consulting
Product Description
Performance characteristics:
PLC program control, stable performance;
Diversified filling, not limited to an aluminum frame;
The filling height can be adjusted arbitrarily according to the size of the aluminum strip;
With automatic feeding function to prevent filling from being in place;
Advanced feeding device designed according to the principle of gas flow;
All rack industrial spray treatment;
The core control components are imported brands.
PLC program control, stable performance;
Diversified filling, not limited to an aluminum frame;
The filling height can be adjusted arbitrarily according to the size of the aluminum strip;
With automatic feeding function to prevent filling from being in place;
Advanced feeding device designed according to the principle of gas flow;
All rack industrial spray treatment;
The core control components are imported brands.
Technical Parameters
Molecular sieve diameter: 0.5-0.8mm
Filling aluminum frame size:min 300*250mm
max 2000*2000mm
Filling speed: 5-8s (1000*1000mm9A)
Aluminum frame width: 6-20mm
Air source requirement: 0.65MPa
Power supply: AC220V, 50Hz
Power: 1KW
Dimensions: 1100*1100*3600mm
Filling aluminum frame size:min 300*250mm
max 2000*2000mm
Filling speed: 5-8s (1000*1000mm9A)
Aluminum frame width: 6-20mm
Air source requirement: 0.65MPa
Power supply: AC220V, 50Hz
Power: 1KW
Dimensions: 1100*1100*3600mm
Supporting Products
FZJ01Automatic Desiccant Filling Machine can be used with the following equipment to compose Insulating Glass Machine production line.
