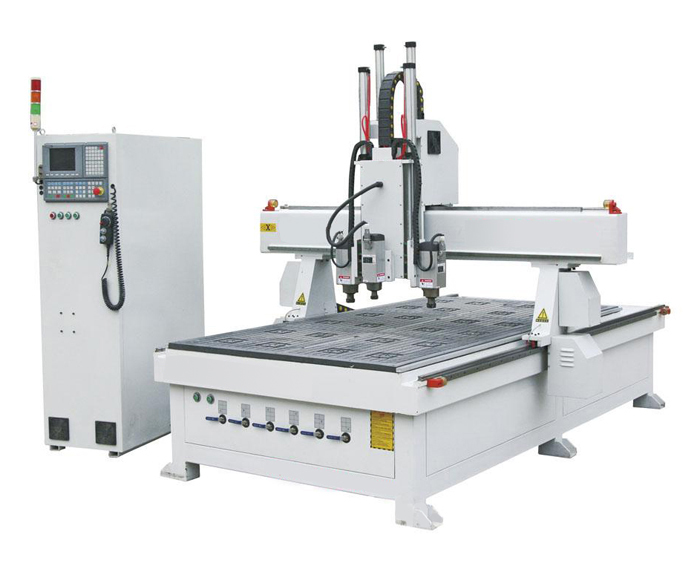

JZ-M1325A-3 Three-step four-axis woodworking CNC router
Views：
Online consulting
Product Description
1. Two 4.5KW Air-cooling spindle, two 3KW Air-cooling spindle.
2. The Middle spindle can rotate 180 degree freely according to your process, not only can used be for engraving and cutting on plane board's surface, also for milling and drilling on the board's two sides.
3. Four spindles can use three different tools for your three different designs' processing at the same time, which is similar with Auto-tool changer CNC Machine Center with three tools.
4. Taiwan Syntec Control System, with vernier Handle controller.
5. Vacuum System with ： Vacuum table with suction block, vacuum pump and tubes
6. Higher gantry can be up to 300mm; bigger gantry width can make sure every spindle's effective working area.
7. Heavy bilayer side plates, which can keep large supporting power for the gantry's moving perfectly.
8. XYZ effective working area is 1300*2500*300mm.
9. Independently Electric Control Box, with perfect wiring and free moving pulleys.
10. Heavy Hard Steel Lath Body, dealing with Time-treatment, never to be deformed. Keep the machine's working High stability.
11. High-precision and bigger ball screw. Original bigger Taiwan HIWIN straight square guide rail, to make sure the machine's working high-speed and high-efficiency.
2. The Middle spindle can rotate 180 degree freely according to your process, not only can used be for engraving and cutting on plane board's surface, also for milling and drilling on the board's two sides.
3. Four spindles can use three different tools for your three different designs' processing at the same time, which is similar with Auto-tool changer CNC Machine Center with three tools.
4. Taiwan Syntec Control System, with vernier Handle controller.
5. Vacuum System with ： Vacuum table with suction block, vacuum pump and tubes
6. Higher gantry can be up to 300mm; bigger gantry width can make sure every spindle's effective working area.
7. Heavy bilayer side plates, which can keep large supporting power for the gantry's moving perfectly.
8. XYZ effective working area is 1300*2500*300mm.
9. Independently Electric Control Box, with perfect wiring and free moving pulleys.
10. Heavy Hard Steel Lath Body, dealing with Time-treatment, never to be deformed. Keep the machine's working High stability.
11. High-precision and bigger ball screw. Original bigger Taiwan HIWIN straight square guide rail, to make sure the machine's working high-speed and high-efficiency.
Technical Parameters
Lathe Structure:Thick-walled square tube
Working Area:1300×2500×300mm
Overall dimension:2350×3150×1800mm
Processing accuracy:0.05mm
Resolution:0.05mm
Spindle power:3KW/4.5KW Air-cooling
Spindle Speed:18000r/min
Max. Idling speed:25000mm/min
Max. working Speed:15000mm/min
Run mode:Stepper
Working Voltage:AC380V/50Hz AC220V/50Hz
Command:Standard G code
Operating System:Taiwan SYNTEC control system
Countertops:Vacuum adsorption
Diameter of Cutter:Φ3.175-Φ12.7
Software:Alpha CAM
Working Area:1300×2500×300mm
Overall dimension:2350×3150×1800mm
Processing accuracy:0.05mm
Resolution:0.05mm
Spindle power:3KW/4.5KW Air-cooling
Spindle Speed:18000r/min
Max. Idling speed:25000mm/min
Max. working Speed:15000mm/min
Run mode:Stepper
Working Voltage:AC380V/50Hz AC220V/50Hz
Command:Standard G code
Operating System:Taiwan SYNTEC control system
Countertops:Vacuum adsorption
Diameter of Cutter:Φ3.175-Φ12.7
Software:Alpha CAM
Supporting Products
JZ-M1325A-3Three-step four-axis woodworking CNC router can be used with the following equipment to compose CNC Router production line.
