Woodworking CNC Router

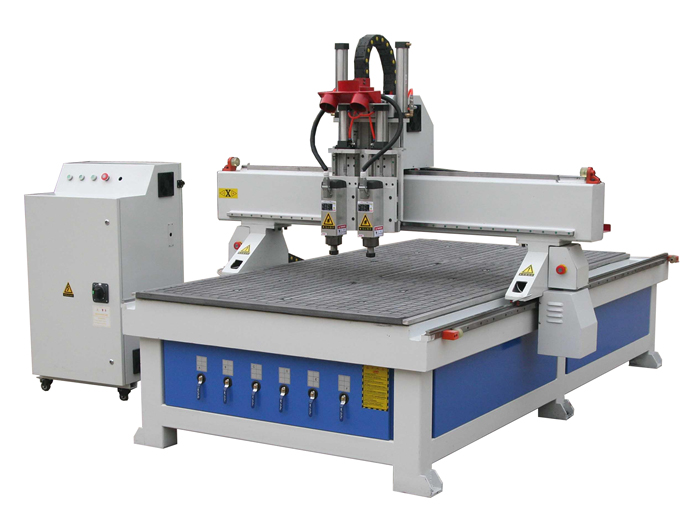

JZ-1325-2D Double Head Wood CNC Router
Views：
Online consulting
Product Description
1. Two 4.5KW Original Imported Italy HSD Air-cooling spindles.
2. Two spindles can use two different tools for your two different designs' processing at the same time, which is similar with Auto-tool changer CNC Machine Center.
3. DSP Servo Control System with auto-tool changing function, flexible and saving your computer resource.
Other Optional Control system:
(1) Original Weihong Computer Control System, with Handle controller;
(2)Taiwan Syntec Control System, with vernier Handle controller
4. Extra heavy Black Hard PVC Table, with T slots for fixing material.
5. Higher gantry can be up to 300mm; bigger gantry width can make sure every spindle's effective working area.
6. Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.
7. XYZ effective working area is 1300*2500*200mm.
Use the world Famous brand for the machine's main parts, such as Original Italy Imported HSD Spindles, Taiwan HIWIN Big Size Straight Guide Rail, Japan Servo Motor and Driver system, Germany Ball Screw, France Small Electronic parts, etc. All of these can make sure the machine's working perfectly, High speed and efficiency.
8. Independently Electric Control Box , with perfect wiring and free moving pulleys.
9. Heavy Model Harder Steel Lath Body, dealing with Time-treatment, never to be deformed. keep the machine's working High stability.
10. High-precision and bigger ball screw. Original bigger Taiwan HIWIN straight square guide rail. To make sure the machine’s working high-speed and high-efficiency.
11. Anti-interference and antistatic electric cables, with High flexible and not easy broken characters.
2. Two spindles can use two different tools for your two different designs' processing at the same time, which is similar with Auto-tool changer CNC Machine Center.
3. DSP Servo Control System with auto-tool changing function, flexible and saving your computer resource.
Other Optional Control system:
(1) Original Weihong Computer Control System, with Handle controller;
(2)Taiwan Syntec Control System, with vernier Handle controller
4. Extra heavy Black Hard PVC Table, with T slots for fixing material.
5. Higher gantry can be up to 300mm; bigger gantry width can make sure every spindle's effective working area.
6. Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.
7. XYZ effective working area is 1300*2500*200mm.
Use the world Famous brand for the machine's main parts, such as Original Italy Imported HSD Spindles, Taiwan HIWIN Big Size Straight Guide Rail, Japan Servo Motor and Driver system, Germany Ball Screw, France Small Electronic parts, etc. All of these can make sure the machine's working perfectly, High speed and efficiency.
8. Independently Electric Control Box , with perfect wiring and free moving pulleys.
9. Heavy Model Harder Steel Lath Body, dealing with Time-treatment, never to be deformed. keep the machine's working High stability.
10. High-precision and bigger ball screw. Original bigger Taiwan HIWIN straight square guide rail. To make sure the machine’s working high-speed and high-efficiency.
11. Anti-interference and antistatic electric cables, with High flexible and not easy broken characters.
Technical Parameters
X、Y Working Area:1300×2500mm
Z Working Area:200mm
Table size:1300×2500mm
Max. Idling speed:20m/min
Clamping form:Vacuum adsorption
Processor:DSP/Frequency 100MHz
Interface:USB
Command:G code*.u00*.mmg*.plt
Operating System:DSP
Power (not include the spindle):3000W
Working Voltage:380V 50Hz
Spindle power:4.5KWx2( water-cooling)
Spindle Speed:0-24000rpm/min
Run mode:stepper
Z Working Area:200mm
Table size:1300×2500mm
Max. Idling speed:20m/min
Clamping form:Vacuum adsorption
Processor:DSP/Frequency 100MHz
Interface:USB
Command:G code*.u00*.mmg*.plt
Operating System:DSP
Power (not include the spindle):3000W
Working Voltage:380V 50Hz
Spindle power:4.5KWx2( water-cooling)
Spindle Speed:0-24000rpm/min
Run mode:stepper
Supporting Products
JZ-1325-2DDouble Head Wood CNC Router can be used with the following equipment to compose CNC Router production line.
