Cutting Machine

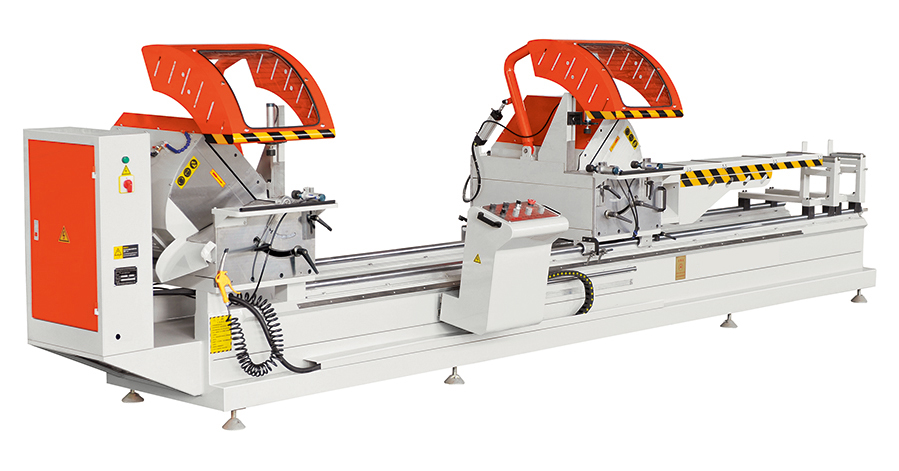

LJZ2-500×4200/5000 Double-head Precision Cutting Saw for Aluminum Profile
Views：
Online consulting
Product Description
The machine is designed for cutting aluminum curtain wall and window and door profile. The cutting angle is auto adjustable through 45°, 67.5°and 90°.
Equipment Advantages:
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance.
The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy.
Imported carbide saw blade gives accurate processing and high efficiency.
Two cutting heads can work together or single, when together work, one time can cut of the required length and angle.
Equipment Advantages:
It has feature of easy operation, reliable performance, advanced technique and convenient maintenance.
The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy.
Imported carbide saw blade gives accurate processing and high efficiency.
Two cutting heads can work together or single, when together work, one time can cut of the required length and angle.
Technical Parameters
Input power：2×2.2Kw
Power supply：380V 50Hz
Air pressure： 0.5～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ500×φ30mm
Cutting angle： 90°、-67.5 °、-45 °
Cutting length： 400-4200mm
Cutting weight×height：195×200mm
Overall dimension：5700×1650×1520mm
Power supply：380V 50Hz
Air pressure： 0.5～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ500×φ30mm
Cutting angle： 90°、-67.5 °、-45 °
Cutting length： 400-4200mm
Cutting weight×height：195×200mm
Overall dimension：5700×1650×1520mm
Supporting Products
LJZ2-500×4200/5000Double-head Precision Cutting Saw for Aluminum Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
