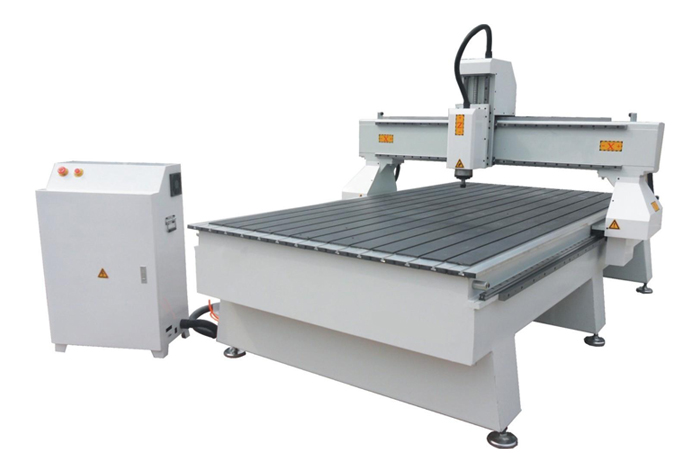

JZ-1325B Economy Type Woodworking CNC Router
Views：
Online consulting
Product Description
Features：
◆ 1325B type engraving machine is currently the most cost-effective an economical product, choice of domestic high-quality water cooling electric spindle and electrical components.
◆ Table is the world's leading vacuum table, made of bakelite. High adsorption capacity, can be strong adsorption of materials of different sizes, density, distortion (1.3-1.45g/cm), resistance to temperature, and can be high temperature (115 ℃).
◆ Speed fast, efficient, engraving speed of up to 15 meters / min. Fine carving without jagged, smooth contours clear bottom.
◆ woodworking industry: Three-dimensional wave board processing, cabinet doors, craft wooden doors, paint the door, screen, process window on the process of milling carved furniture.
◆ Advertising Industry: Advertising signs, PVC panel, Front panel, color plate, logo making, acrylic cutting, plastic molding, large print cutting, sign making, cutting PVC, crystal plate, acrylic, LED / neon light trough, hole-shaped literally cutting, plastic lamp molding.
◆ 1325B type engraving machine is currently the most cost-effective an economical product, choice of domestic high-quality water cooling electric spindle and electrical components.
◆ Table is the world's leading vacuum table, made of bakelite. High adsorption capacity, can be strong adsorption of materials of different sizes, density, distortion (1.3-1.45g/cm), resistance to temperature, and can be high temperature (115 ℃).
◆ Speed fast, efficient, engraving speed of up to 15 meters / min. Fine carving without jagged, smooth contours clear bottom.
◆ woodworking industry: Three-dimensional wave board processing, cabinet doors, craft wooden doors, paint the door, screen, process window on the process of milling carved furniture.
◆ Advertising Industry: Advertising signs, PVC panel, Front panel, color plate, logo making, acrylic cutting, plastic molding, large print cutting, sign making, cutting PVC, crystal plate, acrylic, LED / neon light trough, hole-shaped literally cutting, plastic lamp molding.
Technical Parameters
Working Area:X1300mm Y3500mm Z200mm
Table size:1440×2915mm
Accuracy:Processing Accuracy±0.04mm
Repeat positioning accuracy±0.05mm
Structure:X, Y: Rack and pinion、Z: Ball screw
Countertops:Vacuum adsorption
Max. Idling speed:32000mm/min
Max. working speed:15000mm/min
Spindle power:3.0Kw
Spindle speed:0-18000rpm
Run mode:Stepper
Command:G code
Working Voltage:AC380V/50Hz
Operating System:Weihong / DSP handle
Table size:1440×2915mm
Accuracy:Processing Accuracy±0.04mm
Repeat positioning accuracy±0.05mm
Structure:X, Y: Rack and pinion、Z: Ball screw
Countertops:Vacuum adsorption
Max. Idling speed:32000mm/min
Max. working speed:15000mm/min
Spindle power:3.0Kw
Spindle speed:0-18000rpm
Run mode:Stepper
Command:G code
Working Voltage:AC380V/50Hz
Operating System:Weihong / DSP handle
Supporting Products
JZ-1325BEconomy Type Woodworking CNC Router can be used with the following equipment to compose CNC Router production line.
