Stone CNC Router

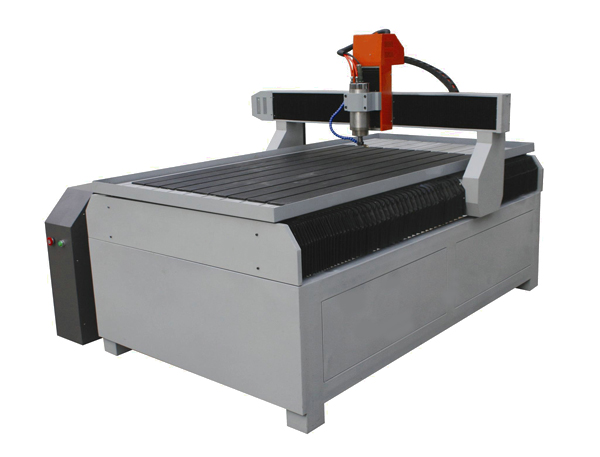

JZ-9015 Light Duty Stone CNC Router
Views：
Online consulting
Product Description
Features：
1. Adopt double nut automatic elimination gap ball screw drive.
2. Adopt the breakpoint memory, guaranteed in the accident (tool broken) or the next day processing.
3. Unique dustproof, waterproof device. Effectively prevent the machine transmission parts of dust and rust, made maintenance work easier.
4. High power cutting not only made carving fine without jagged, but also made the bottom surface smooth and contours clear.
5. Strong compatibility, suitable for variety of CNC Software: type3, Artcam, Castmate, Wentai and other CAD/CAM software, easy to make Reliefs, three-dimensional WordArt and other processing methods.
Scope:
Stone industry: tombstone engraving, stone engraving, marking tiles, tile cutting, sandstone and other stone materials processing Relief lettering.
Woodworking: wave board processing, wooden doors, screens, craft sash, wood relief carving and other materials.
Advertising industry: advertising signs, signs operation, acrylic engraving cutting, plastic molding and other products such as the production of advertising material.
Craft gifts: copper, aluminum, glass, plastic, color plates, marble and other materials processing.
1. Adopt double nut automatic elimination gap ball screw drive.
2. Adopt the breakpoint memory, guaranteed in the accident (tool broken) or the next day processing.
3. Unique dustproof, waterproof device. Effectively prevent the machine transmission parts of dust and rust, made maintenance work easier.
4. High power cutting not only made carving fine without jagged, but also made the bottom surface smooth and contours clear.
5. Strong compatibility, suitable for variety of CNC Software: type3, Artcam, Castmate, Wentai and other CAD/CAM software, easy to make Reliefs, three-dimensional WordArt and other processing methods.
Scope:
Stone industry: tombstone engraving, stone engraving, marking tiles, tile cutting, sandstone and other stone materials processing Relief lettering.
Woodworking: wave board processing, wooden doors, screens, craft sash, wood relief carving and other materials.
Advertising industry: advertising signs, signs operation, acrylic engraving cutting, plastic molding and other products such as the production of advertising material.
Craft gifts: copper, aluminum, glass, plastic, color plates, marble and other materials processing.
Technical Parameters
X、Y Working Area:900×1500mm
Z Working Area:120mm
Table size:1100*1800mm
Max. Idling speed:8.8m/15m/min
Max. working speed:6m/10m/min
Resolution:0.01mm
Repeat positioning accuracy:0.05mm
Max feeding height:100mm
Command:G code*.u00*.mmg*.plt
Operating System:windows98/2000/xp
Power (not include the spindle):1000w
Working Voltage:AC220V/50Hz
Spindle power:3kw(Optional 2.2kw)
Spindle Speed:24000rpm/min
Run mode:Stepper/Servo
Z Working Area:120mm
Table size:1100*1800mm
Max. Idling speed:8.8m/15m/min
Max. working speed:6m/10m/min
Resolution:0.01mm
Repeat positioning accuracy:0.05mm
Max feeding height:100mm
Command:G code*.u00*.mmg*.plt
Operating System:windows98/2000/xp
Power (not include the spindle):1000w
Working Voltage:AC220V/50Hz
Spindle power:3kw(Optional 2.2kw)
Spindle Speed:24000rpm/min
Run mode:Stepper/Servo
Supporting Products
JZ-9015Light Duty Stone CNC Router can be used with the following equipment to compose CNC Router production line.
