Advertising CNC Router

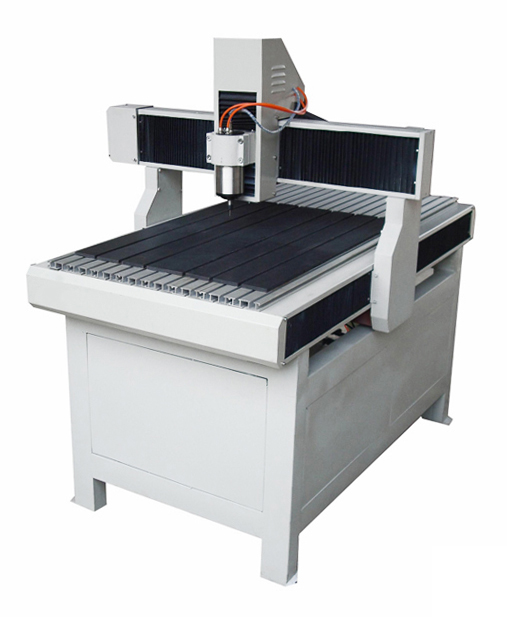

JZ-6090 Small Advertising Engraving Machine
Views：
Online consulting
Product Description
Features:
1. Whole cast body, strong rigidity, mechanical precision is guaranteed, adopt high-precision ball screw.
2. With high precision ball screw ensures more stable movement, higher accuracy.
3. Use more advanced Weihong control system, large screen display, the operation easier and easier to maintain.
4. Aluminum countertop, elegant appearance.
5. Compatible Type3/Artcam/Castmate/Proe/UG / Wentai and other CAD / CAM design software.
Applicable industries:
This machine is widely used in advertising industry, such as advertising logos, signs, badges, office supplies, crafts, small metal signs, architectural models and so on.
Optional: Servo drive, HSD spindles.
1. Whole cast body, strong rigidity, mechanical precision is guaranteed, adopt high-precision ball screw.
2. With high precision ball screw ensures more stable movement, higher accuracy.
3. Use more advanced Weihong control system, large screen display, the operation easier and easier to maintain.
4. Aluminum countertop, elegant appearance.
5. Compatible Type3/Artcam/Castmate/Proe/UG / Wentai and other CAD / CAM design software.
Applicable industries:
This machine is widely used in advertising industry, such as advertising logos, signs, badges, office supplies, crafts, small metal signs, architectural models and so on.
Optional: Servo drive, HSD spindles.
Technical Parameters
|
Working Area |
600×900×80mm |
|
XYZ Guide |
Round guide (linear guide optional) |
|
Transmission |
Ball screw |
|
Processing accuracy |
<0.05/300mm |
|
Max working speed |
5000mm/min |
|
Spindle power |
1.5/2.2KW |
|
Spindle speed |
6000-24000rpm |
|
Command |
G code*.u00*.mmg*.plt |
|
Diameter of Cutter |
Φ3.175mm,Φ6mm |
|
Working Voltage |
AC220V/50HZ |
|
Drive mode |
Stepper |
|
Weight |
300KG |
|
Package size |
2000×650×1300mm |
Supporting Products
JZ-6090Small Advertising Engraving Machine can be used with the following equipment to compose CNC Router production line.
