Cutting Machine

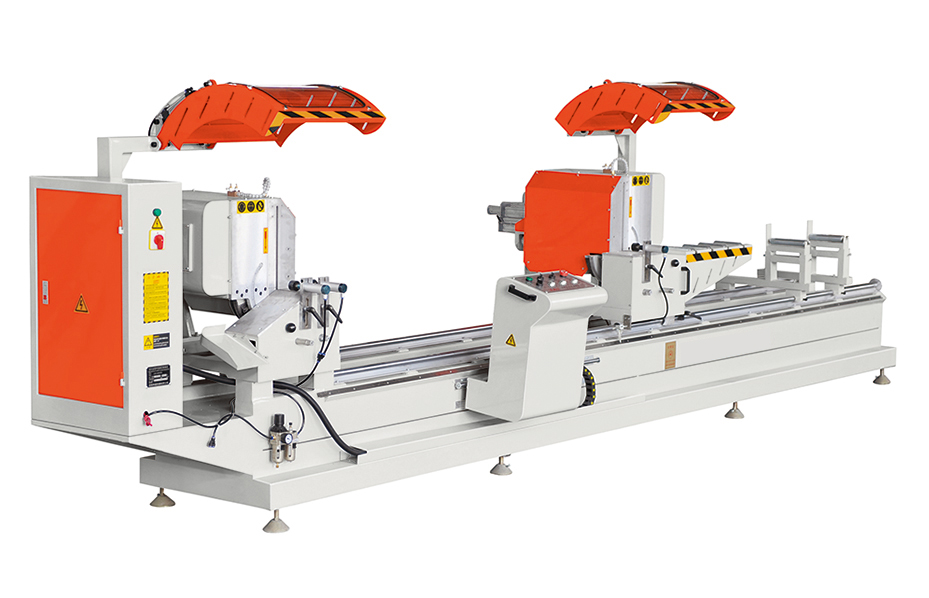

LJZ2-450×3700 Double-head Cutting Saw for Aluminum and PVC Profile
Views：
Online consulting
Product Description
The machine is used to process the aluminum and plastic profiles at angels of -45°~90°~45°
The right head adopts linear guide result in uniform speed feeding and high accuracy.
Two head work independently or together.
Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
Automatic protection guard, safe operation.
The right head adopts linear guide result in uniform speed feeding and high accuracy.
Two head work independently or together.
Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
Automatic protection guard, safe operation.
Technical Parameters
Input power：2×2.2Kw
Power supply：380V 50Hz
Air pressure： 0.5～0.8Mpa
Motor rotary speed：2800r/min
Blade specification：φ450×φ30mm
Cutting angle： 45°、90 °、-45 °
Cutting length： 580-3700mm
Cutting weight×height：120×160mm
Overall dimension：5100×1300×1550mm
Supporting Products
LJZ2-450×3700Double-head Cutting Saw for Aluminum and PVC Profile can be used with the following equipment to compose Aluminum Door and Window Machine production line.
